Bevel brushes crimped with thread INOX

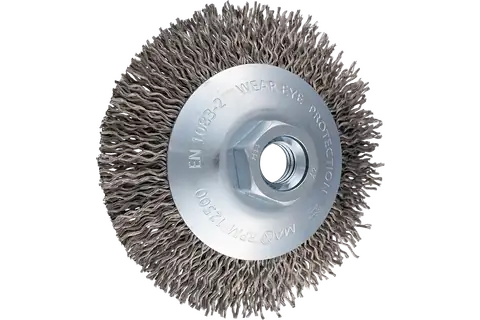

Bevel brush crimped KBU dia. 100x10 mm M14 stainless steel cord wire dia. 0.30 mm angle grinders

POS KBU 10010/M14 LIT INOX 0,30
Item number:
43316008
EAN:
4007220789667
New
Technical information
Bevel brush crimped KBU dia. 100x10 mm M14 stainless steel cord wire dia. 0.30 mm angle grinders

Dia. external
100 mm
Dia. filament material
0.25 mm
Dia. thread
M14x2
Filament material
Stainless steel wire (INOX)
Length, filament
20 mm
Max. RPM
12500 RPM
Mounting system
Thread
RPM, optimum
5.000 - 12.500 RPM
Width
10 mm
Packaging unit
1 piece
Description

Excellent for medium-duty brushing such as deburring, cleaning and derusting.

Cord wire is made of multiple wavy wire filaments which are stranded together. This special wire construction combines the aggressive brushing effect of a knotted brush with the flexibility of a wavy brush, achieving a particularly good surface finish and a longer tool life.

Brushes with cord wire are particularly robust and durable and are therefore ideally suited to demanding tasks.

In order to fulfil the particular requirements for working with stainless steel (INOX), PFERD TOOLS uses wire quality 1.4310/1.4301 (V2A) for all INOX brushes. Practical experience from industry has shown that this offers very good corrosion resistance with an optimum tool life. All PFERD TOOLS brushes with INOX filaments are colour-coded in blue and are suitable for use on all stainless steels (INOX), such as V4A. The wire quality 1.4310/1.4301 tends to become ferromagnetic in the case of cold working; i.e. it can be attracted using magnets.The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion.

Stainless steel wire (INOX) withstands temperatures up to 450 °C.

Advantages
  • Optimal access to hard-to-reach areas such as inner edges, grooves and keyways.
  • Highly flexible, enabling optimal adjustment to the workpiece contour.
  • Suitable for use on angle grinders up to 80 m/s.
  • Aggressive and effective work due to the special wire construction.
  • Longer tool life compared to conventional crimped brushes.
  • Very good corrosion resistance.
Recommendations for use
  • Please observe the recommended rotational speeds.
  • For optimum results, use on speed-adjustable angle grinders.
Materials that can be worked
Aluminium
Bronze
Cobalt-based alloys
Hard non-ferrous metal
High-temperature-resistant materials
Nickel-based alloys (e.g. Inconell and Hastelloy)
Nickel or titanium-based superalloys
Other non-ferrous metals
Soft titanium alloys (tensile strength 500 N/mm²)
Stainless steel (INOX)
Titanium
Titanium alloys
Applications
Cleaning
Deburring
Derusting
Paint stripping
Removing heat discolouration
Removing oxide layers
Roughening
Drive types
Angle grinder
Cordless angle grinder
Drive spindle
