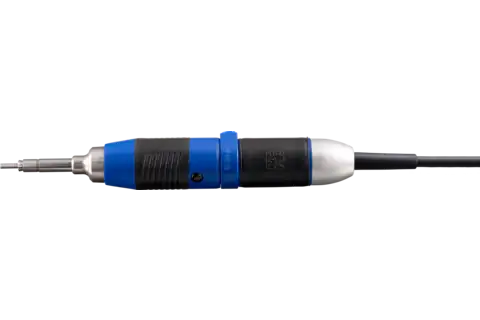

Handpiece MIM HAS 3/500 VS-SP3 50,000-1,000 RPM/150 watts

Technical information

Collet group: 17
Height: 30 mm
Incl. dia collet [mm]: 3 mm
Input voltage: 36 volts
Input voltage 2: 50 volts
Length: 190 mm
Net weight: 0.325 kg
PFERD TOOLS type: MIM HAS 3/500 VS-SP3
Power consumption: 260 watts
Power output: 150 watts
Rotational speed range: 1.000 - 50.000 RPM
Version: With extended spindle
WEEE reg. no.: 55553582
Width: 30 mm
Packaging unit: 1 piece

Description

Straight micro motor handpiece suitable for micro motor control devices MIM STG 3/600 and MIM STG 3/800.

Handpiece with extended spindle (VS) and keyless quick-mounting system (SP).

Advantages

Very high concentricity speed.
Very quiet.
Automatic speed limitation.
Start interlock without clamped tool.
The compact design enables good accessibility.
Extremely energy-efficient and quiet in comparison to air grinders.

Safety notes

Safety extra-low voltage.
Start/stop switch on handpiece.

Contents

2 keys (1x MIM ARS HA D 23.5 mm, 1x MIM SPS DK D 7), 3 mm collet, 1.8 m handpiece cable, 1x BSC blank shank, 3 mm.

PFERD TOOLS VALUE

PFERD TOOLS EFFICIENCY

recommends the drive for working for long periods with low levels of fatigue, whilst saving resources and achieving perfect results as quickly as possible.

PFERD TOOLS ERGONOMICS

recommends the drive to sustainably reduce the noise produced during use and to improve comfort when working.

Downloads

Micro motor handpieces MIM HAS
