Mounted points - cylindrical type STEEL EDGE

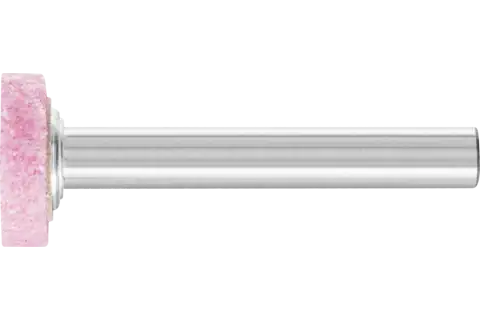

STEEL EDGE mounted point cylindrical dia. 16x4 mm shank dia. 6 mm A46 for steel and cast steel

Item number:
31313274
EAN:
4007220098929

Login / Register
Choose options
Dia. external
Dia. shank
Grit size
Width
Technical information
STEEL EDGE mounted point cylindrical dia. 16x4 mm shank dia. 6 mm A46 for steel and cast steel

Dia. external
16 mm
Dia. shank
6 mm
Grit size
46
Length, shank
40
Max. RPM
59600 RPM
RPM, optimum
42000 RPM
Width
4 mm
Packaging unit
10 pieces
Description

The STEEL EDGE type is particularly well-suited to edge grinding and deburring work on steel and cast steel components.

Its applications also include grinding of chamfers in preparation for weld seams and grinding of contours.

The cylindrical shape ZY is ideal for grinding bores, radii and contours.

Advantages
  • Long tool life and low tool wear due to hard, dimensionally stable bond.
  • Economical to use due to the high edge stability even on low-speed tool drives.
  • Particularly well suited to work on edges.
Recommendations for use
  • STEEL EDGE mounted points perform best at a cutting speed of 25 to 40 m/s.
Safety notes
  • The maximum permitted rotational speed relates to the unsupported shank length of 10 mm.
Materials that can be worked
Cast steel
Steel
Applications
Deburring
Finishing
Grinding out
Grouting
Leveling
Surface work
Working on edges (chamfering, rounding)
Work on weld seams
Drive types
Flexible shaft drive
Straight grinder
