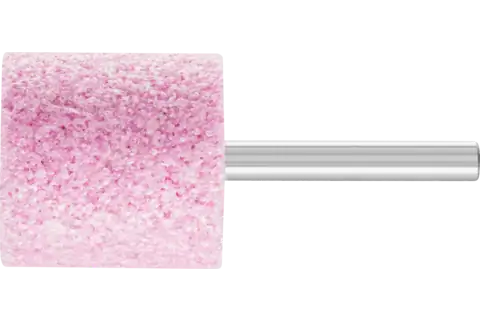

STEEL EDGE mounted point cylindrical dia. 32x32 mm shank dia. 6 mm A24 for steel and cast steel

Technical information

STEEL EDGE mounted point cylindrical dia. 32x32 mm shank dia. 6 mm A24 for steel and cast steel

Dia. external: 32 mm
Dia. external [inch]: 1.1 /4 Inch
Dia. shank: 6 mm
Grit size: 24
Length, shank: 40
RPM, max.: 25700 RPM
RPM, optimum: 21000 RPM
Shape: W 230
Width: 32 mm
Packaging unit: 5 pieces

Description

The STEEL EDGE type is particularly well-suited to edge grinding and deburring work on steel and cast steel components.

Its applications also include grinding of chamfers in preparation for weld seams and grinding of contours.

The cylindrical shape ZY is ideal for grinding bores, radii and contours.

Advantages

Long tool life and low tool wear due to hard, dimensionally stable bond.
Economical to use due to the high edge stability even on low-speed tool drives.
Particularly well suited to work on edges.

Recommendations for use

STEEL EDGE mounted points perform best at a cutting speed of 25 to 40 m/s.

Safety notes

The maximum permitted rotational speed relates to the unsupported shank length of 10 mm.

Materials that can be worked: Cast steel; Steel

Applications: Deburring; Finishing; Grinding out; Grouting; Leveling; Surface work; Working on edges (chamfering, rounding); Work on weld seams

Drive types: Flexible shaft drive; Straight grinder
