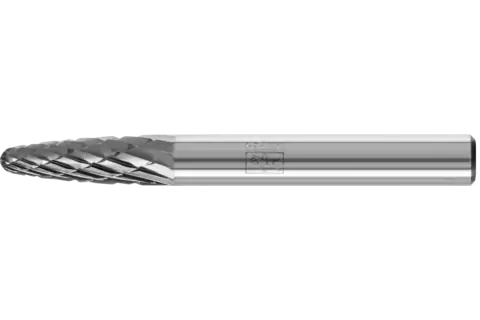

Tungsten carbide burr tree shape with radius end RBF dia. 06x18mm shank dia. 6mm Z3P HICOAT universal

Technical information

Tungsten carbide burr tree shape with radius end RBF dia. 06x18mm shank dia. 6mm Z3P HICOAT universal

Cut: 3 PLUS HC-FEP
Dia. external: 6 mm
Dia. shank: 6 mm
Length, cut: 18 mm
Length, total: 55 mm
RPM, hardened, heat-treated steels over 1,200 N/mm²: 13.000 - 24.000 RPM
RPM, steels up to 1,200 N/mm²: 24.000 - 40.000 RPM
Radius corner design: 1.5 mm
Packaging unit: 1 piece

Description

Cut 3 PLUS with HICOAT coating HC-FEP is characterized by its high hardness and wear resistance. It enables effective chip removal through improved anti-adhesion characteristics and is highly temperature-resistant. It allows for a longer tool life and use at higher cutting speeds in comparison with uncoated burrs.

Tree-shaped burr with radius end according to DIN 8032 with cut conforming to DIN 8033.

Advantages

The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Recommendations for use

If the smallest area of the burr diameter is being used, the recommended rotational speed can be increased accordingly.
To ensure costeffective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 6 mm with drives with a power output from 300 watts.

Materials that can be worked: Case-hardened steels; Cast steel; Hard aluminium alloys; Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Steel; Steel, cast steel; Steels over 700 N/mm² (> 220 HB); Steels up to 1,200 N/mm² (< 38 HRC); Steels up to 700 N/mm² (< 220 HB); Tool steels

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Drive types: Automated centres; Drive spindle; Flexible shaft drive; Robot; Straight grinder; Tool machine

PFERD TOOLS VALUE

PFERD TOOLS EFFICIENCY

recommends burrs with the HICOAT coating for working for long periods with low levels of fatigue, whilst saving resources and achieving perfect results as quickly as possible.

Downloads

Tungsten carbide burrs for general use, cut 3 PLUS HC-FEP, tree shape with radius end RBF

Tungsten carbide burr tree shape with radius end RBF dia. 06x18mm shank dia. 6mm Z3P HICOAT universal

RBF 0618/6 Z3 PLUS HC-FEP
