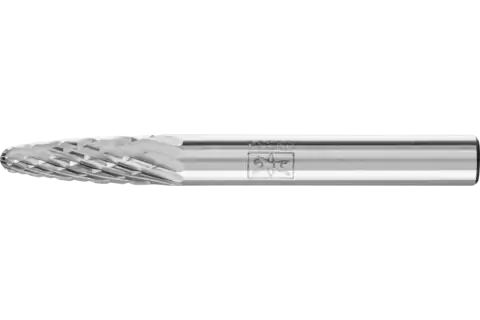

Tungsten carbide burr tree shape with radius end RBF dia. 06x18 mm shank dia. 6 mm Z4 universal medium fine

Technical information

Tungsten carbide burr tree shape with radius end RBF dia. 06x18 mm shank dia. 6 mm Z4 universal medium fine

Cut: 4
Dia. external: 6 mm
Dia. external [inch]: 15 /64 Inch
Dia. shank: 6 mm
Dia. shank [inch]: 6 mm
Length, cut: 18 mm
Length, total: 55 mm
Length, total [inch]: 2.11 /64 Inch
RPM from, hard non-ferrous metals: 13000 RPM
RPM from, hardened, heat-treated steels over 1,200 N/mm²: 13000 RPM
RPM from, high-temperature-resistant materials: 13000 RPM
RPM from, rust and acid-resistant steels: 13000 RPM
RPM to, hard non-ferrous metals: 19000 RPM
RPM to, hardened, heat-treated steels over 1,200 N/mm²: 19000 RPM
RPM to, high-temperature-resistant materials: 24000 RPM
RPM to, rust and acid-resistant steels: 24000 RPM
Radius: 1.5 mm
Packaging unit: 1 piece

Description

Cut 4 is especially well-suited to machining of stainless steel (INOX), steel and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. It is characterized by its high stock removal rate with short chips and achieves a good surface.

Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material.

Tree-shaped burr with radius end according to DIN 8032 with cut conforming to DIN 8033.

Advantages

Good stock removal rate through optimum matching of tungsten carbide, geometry, cut and available coating.
Long tool life.
The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.
High surface quality.

Recommendations for use

If the smallest area of the burr diameter is being used, the recommended rotational speed can be increased accordingly.
To ensure costeffective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 6 mm with drives with a power output from 300 watts.

Materials that can be worked: Bronze; Case-hardened steels; Cast steel; Cobalt-based alloys; Hard aluminium alloys; Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Hard non-ferrous metal; High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Stainless steel (INOX); Steel; Steel, cast steel; Steels over 700 N/mm² (> 220 HB); Steels up to 1,200 N/mm² (< 38 HRC); Steels up to 700 N/mm² (< 220 HB); Titanium; Titanium alloys; Tool steels

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Drive types: Flexible shaft drive; Robot; Stationary machines; Straight grinder; Tool machine
